About Tourmaline Studio

Tourmaline Studio is a powerful and flexible Software platform for any chip related operation for the RFID- and SmartCard Industry.



Tourmaline Studio is the preferred solution to execute any SmartCard chip related task in mass production, from chip module level to (semi)finished products:

Chip modules on 35mm tape/super tape

Inlays- or pre-laminated sheets

End-laminated products such as ePassport cover, EMV, mass transportation, etc.

Finished products

Grafic



Grafic

Tourmaline Studio offers a consistent clean Graphical User Interface (GUI) and is the perfect choice to perform:

simple to complex Chip tests

Initialization procedures

Prepersonalization tasks

extended encoding sequences such as OS flashing, Java Applet loading, MifarePLUSTM Security Level switching ...

... and many more !



In combination with adequate equipment- or machinery Tourmaline Studio supports an wide array of RFID- and SmartCard chips- and modules available in the market:

pure Contactless - RFID chip modules

pure Contact - ISO7816 conform SmartCard modules

Dual Interface (DI)

Coil on Module (CoM)

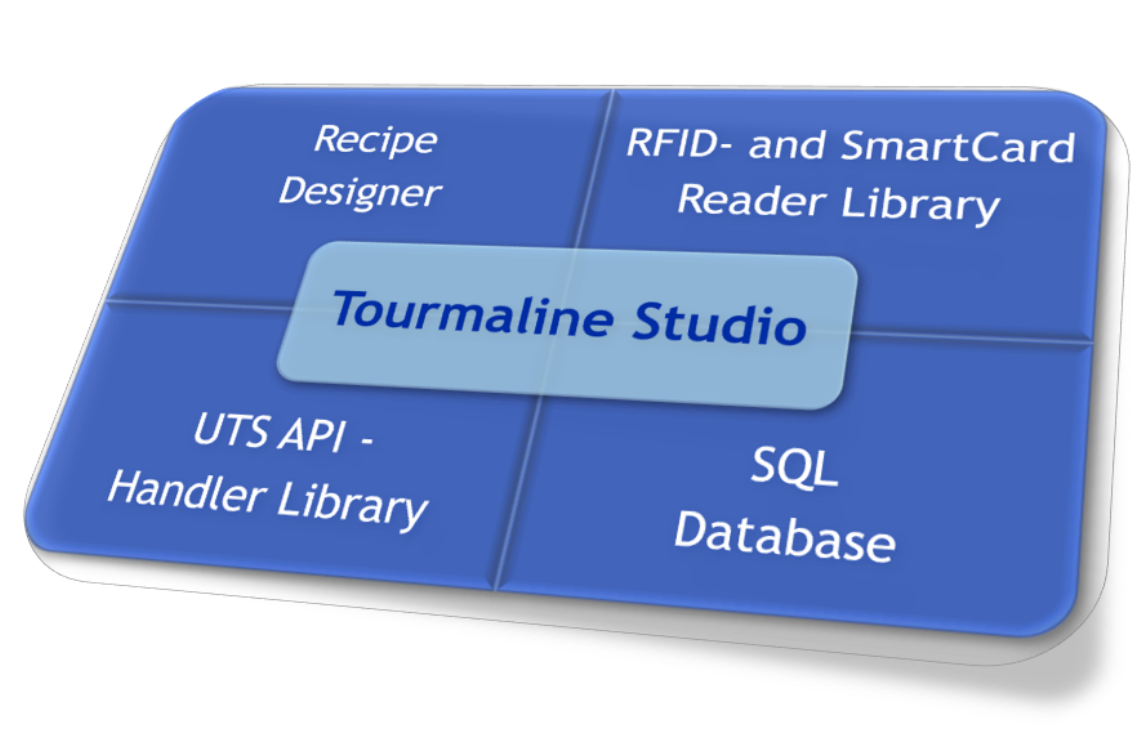

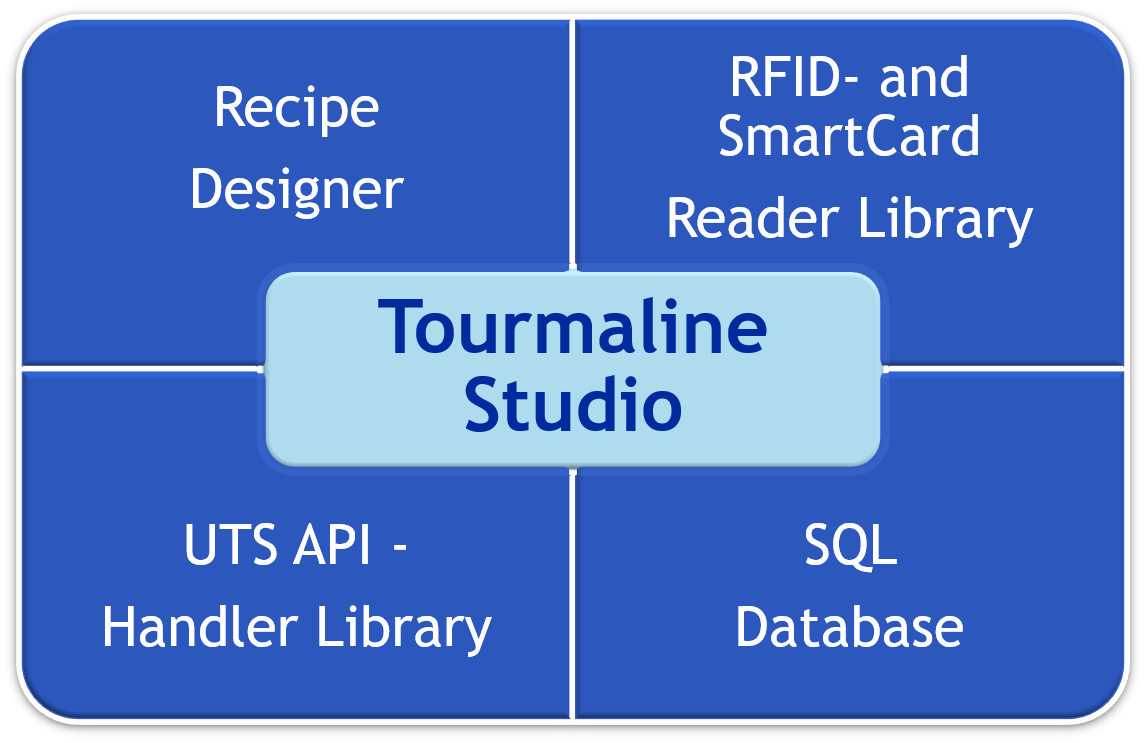

Architecture

Work Flow

View Detail
View Detail

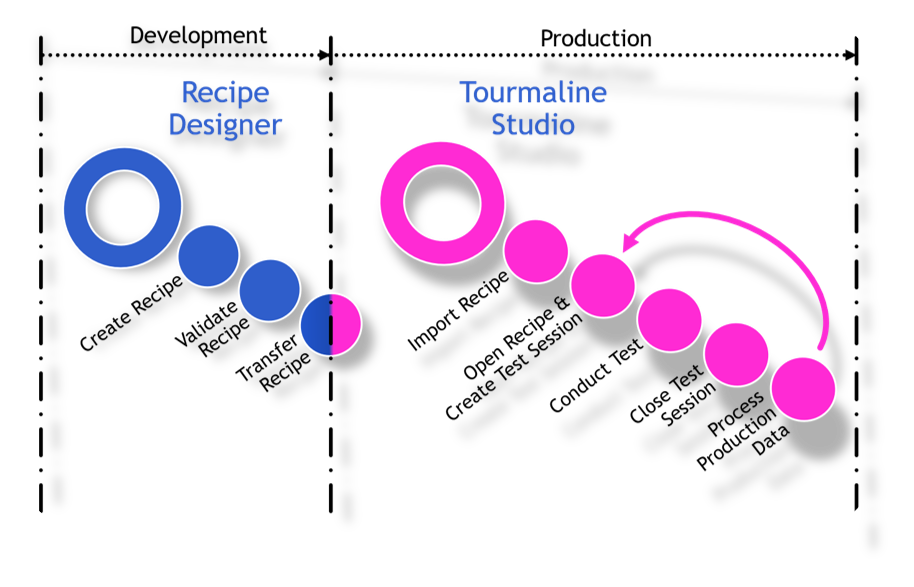

Three simple steps to get your Project transferred to Production

Generate Recipes

Use the Tourmaline Studio Recipe Designer

Validate and Transfer your Recipes

Use the integrated Test Panel to validate your Recipes

Execute Production Jobs and manage results

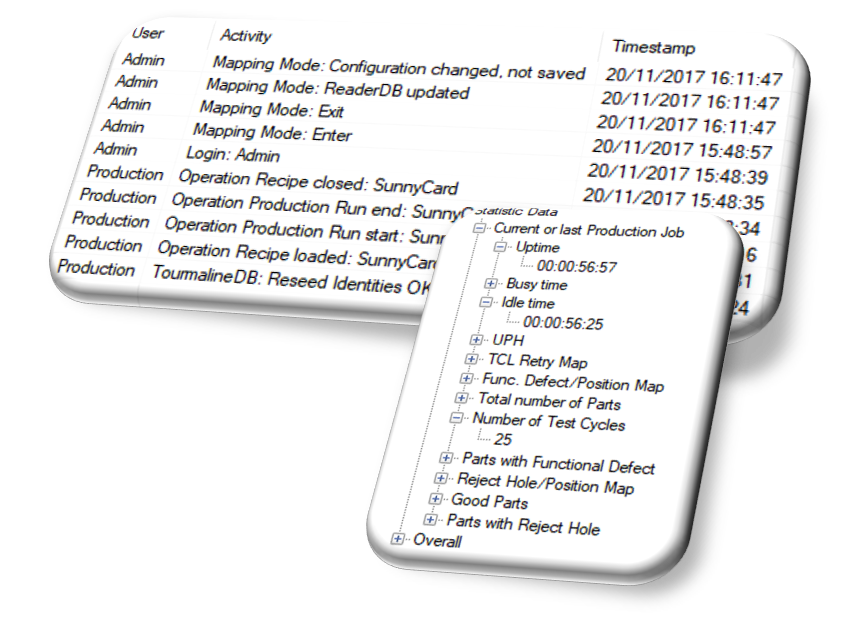

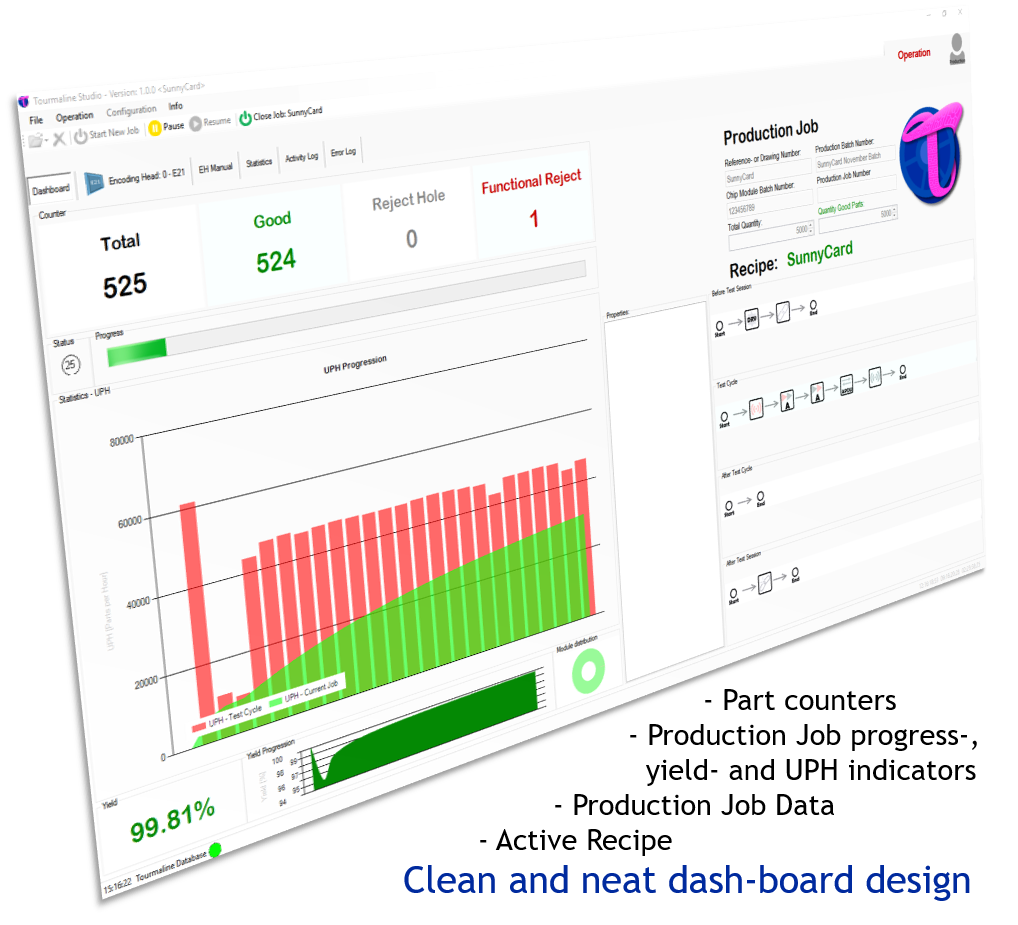

Run Production Jobs in Tourmaline Studio and analyse Data stored in the integrated SQL Database

Tourmaline Studio Recipe Designer

TheTourmaline Studio Recipe Designer implements an easy- and user friendly interface to conveniently generate Recipes – a collection of processes and operating plans that defines the test, initialization, prepersonalization or any other enhanced encoding sequence to be executed.

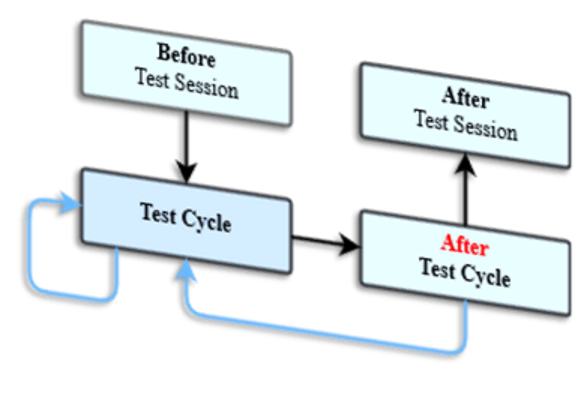

The operating plan contains processes and is structured into:

Before Test Session

Actions to be executed after a session has been created

Test Cycle

Defines the actual test- or encoding task

After Test Cycle

Actions to be executed after the test- or encoding task has finished

After Test Session

Actions to be executed once the session has finished

Grafic

How to create Recipes ?

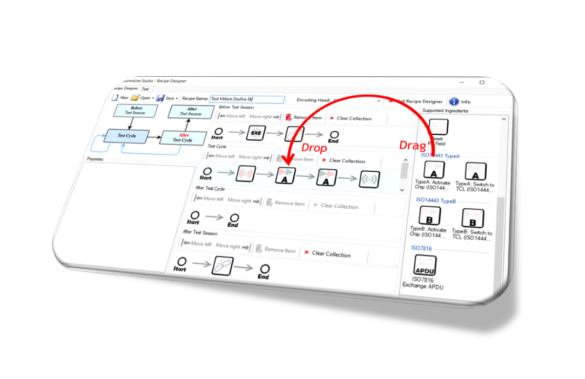

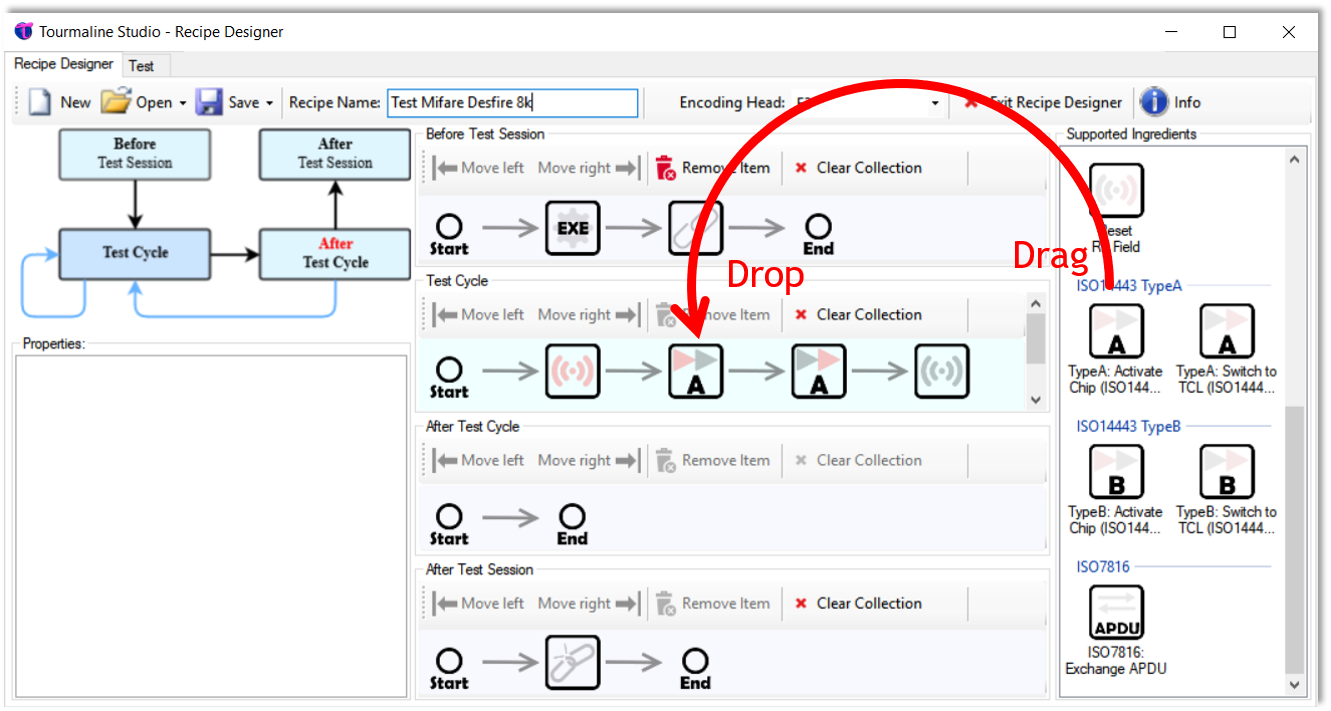

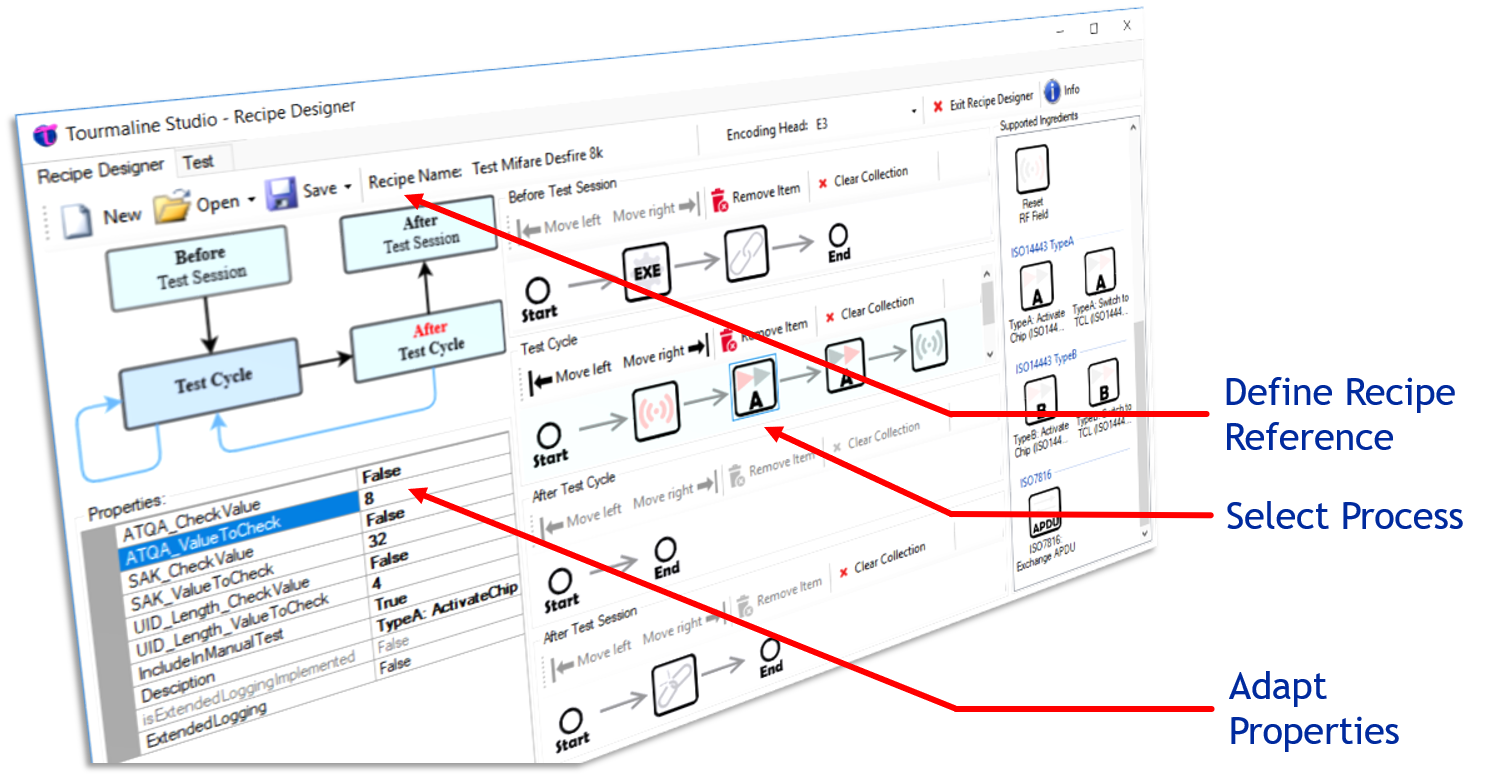

Simply Drag & Drop processes into the operational plan !

How to parameterize Recipes ?

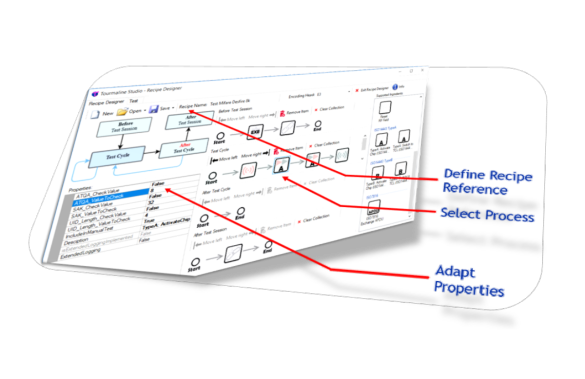

Select process and adapt its Properties !

View Detail
View Detail

Recipe Designer - Features

Quick and convinient Recipe creation using Drag & Drop



Neat and clean Graphical User Interface (GUI)

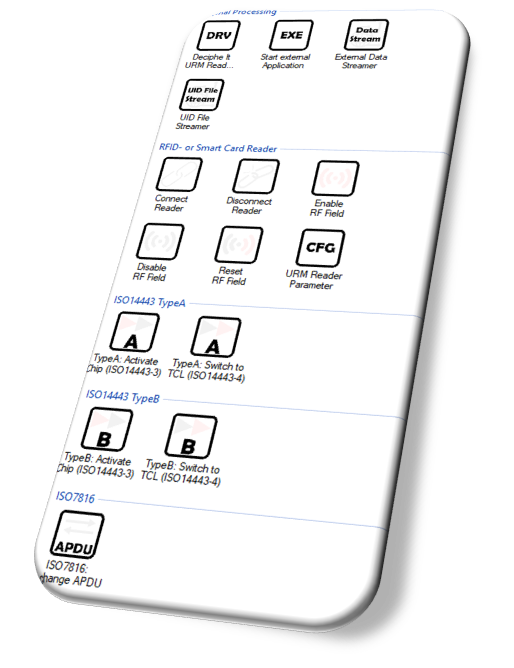

Extensive library to support RFID- and SmartCard reader related processes as well as implements most ISO14443-3 TypeA/TypeB and ISO7816 conform chip commands



Integrated validation function to test any Recipe prior transfer to mass production



Recipe storage in Tourmaline Studio Database or export as file



Optional: Customer specific processes and functionality can be implemented, such as support of any HSM, implementation of proprietary reader- and chip commands, etc

Grafic

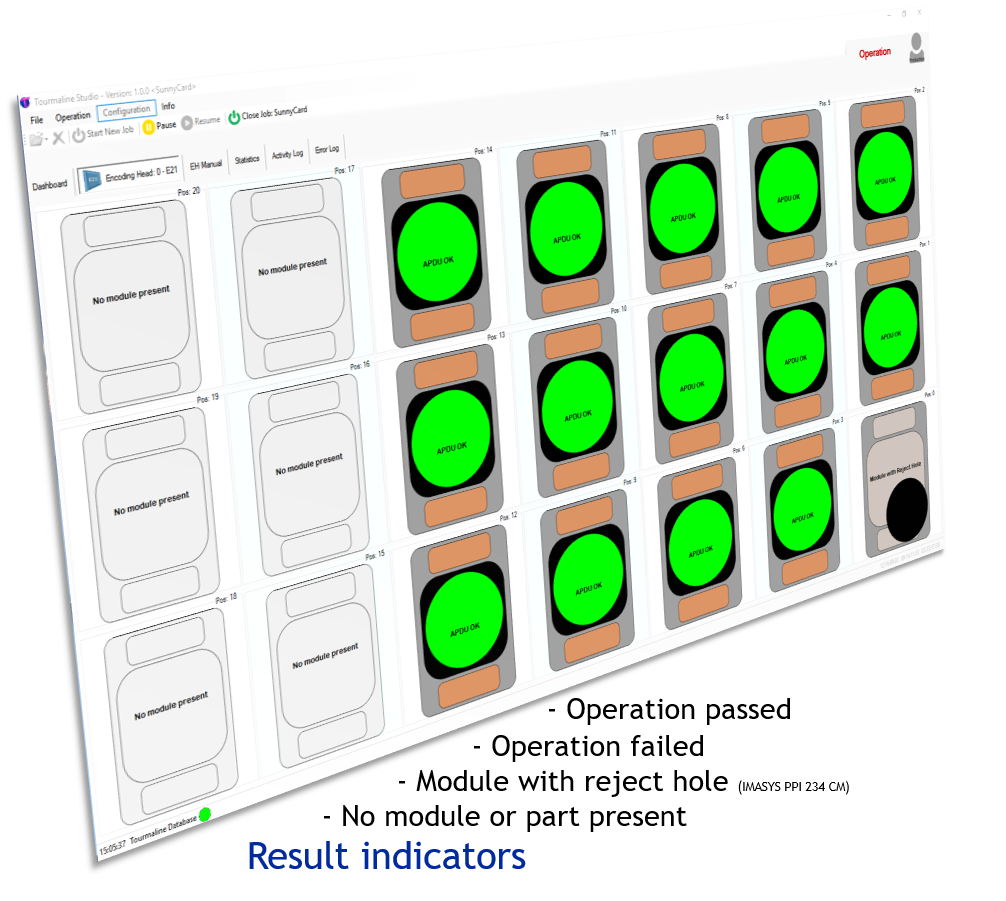

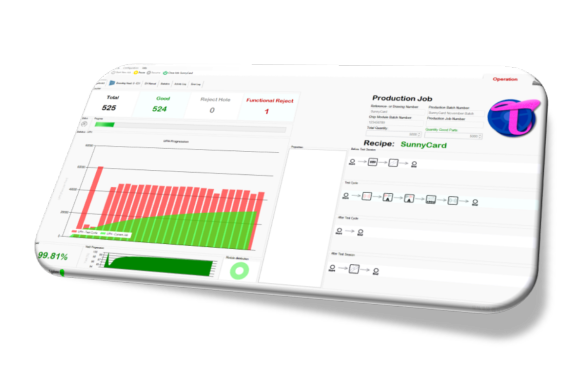

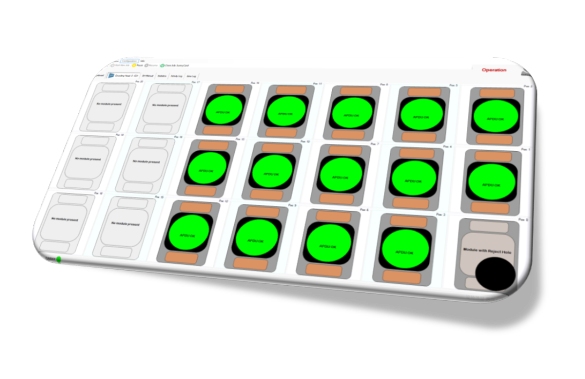

Tourmaline Studio in Operation

View Detail
View Detail

Tourmaline Studio Setup - Mapping Mode

View Detail
View Detail

Tourmaline Studio - Features

Implementation of Admin- and Production modes



Integrated Recipe Designer when in Admin mode

Grafic

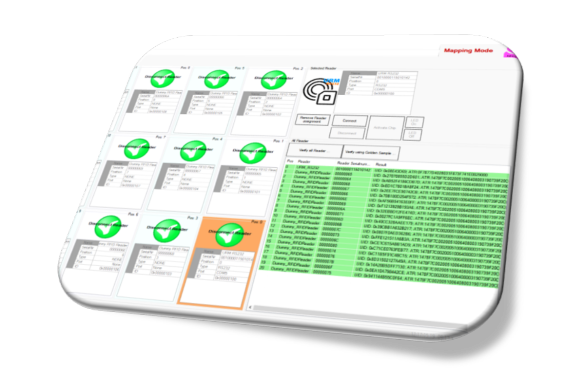

Tourmaline Studio Mapping Mode:

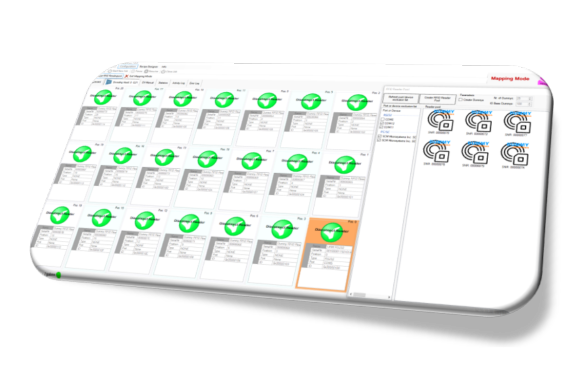

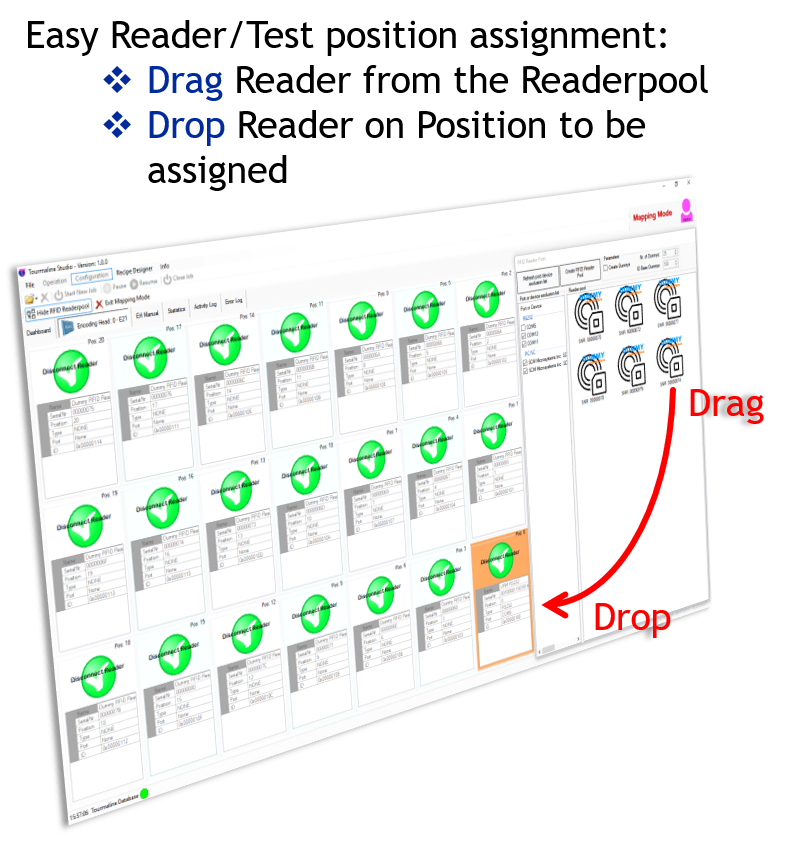

Easy Reader setup and test position assignment via Drag & Drop

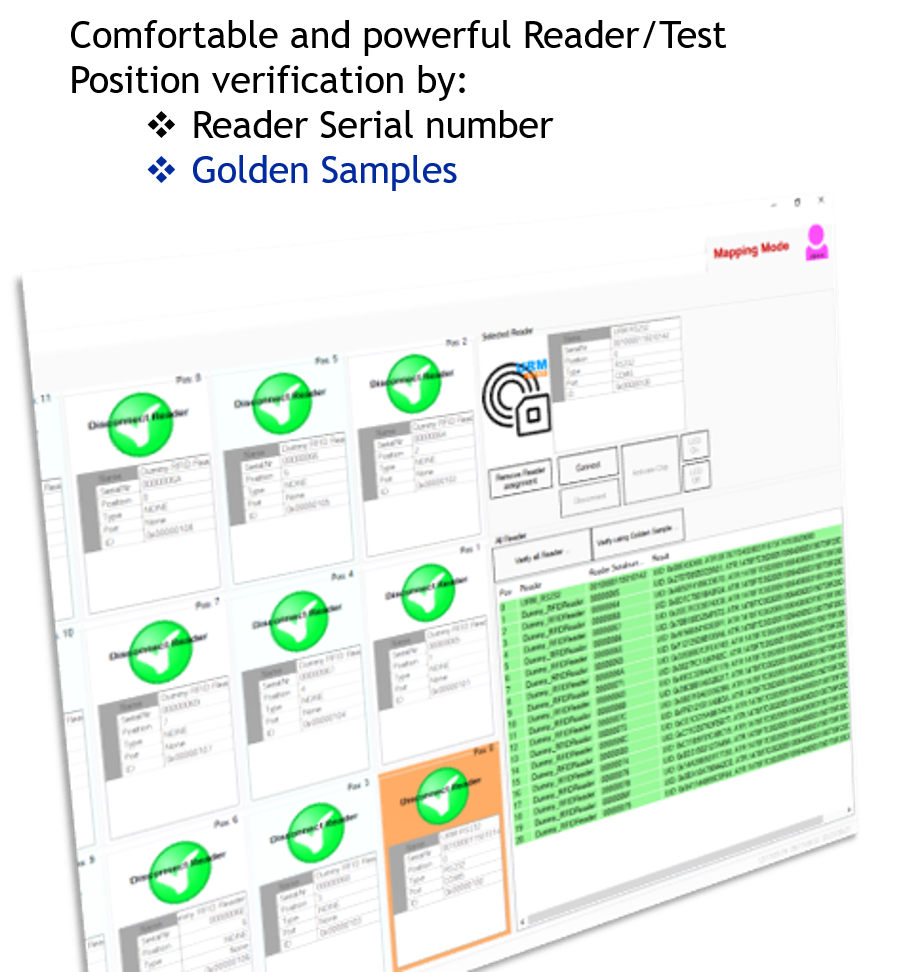

Comfortable test position assignment validation using the reader’s serial number or Golden Samples



Integrated validation function to test any Recipe prior transfer to mass production



Recipe storage in Tourmaline Studio Database or export as file



Optional: Customer specific processes and functionality can be implemented, such as support of any HSM, implementation of proprietary reader- and chip commands, etc

Grafic

Tourmaline Studio - System Requirements



Processor: Intel® Core™ i5 (or equivalent) or higher (32-bit or 64bit)



RAM: 4 GB



Hard disk: 10 GB free space (SSD recommended)



OS: Microsoft® Windows 7 or later (32-bit or 64-bit) (Microsoft® Windows 10 Professional 64-bit recommended)

or

OS: Microsoft® Server 2008 RS2 or later



Microsoft® .NET Framework 4.5 or higher



Microsoft® SQL Server 2014 Express or higher

Supported Handlers

IMASYS

IMASYS PPI 234 CM

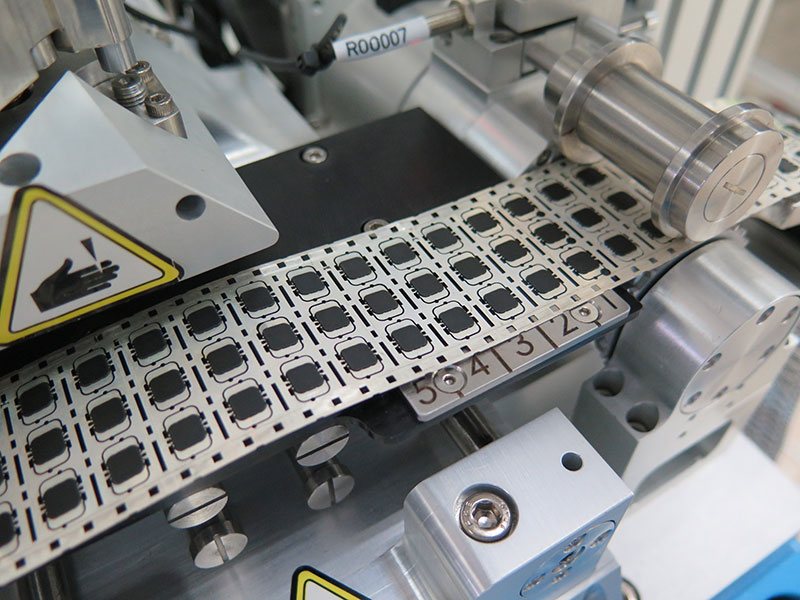

Universal handler for contact and contactless chip modules on 35mm tape

The IMASYS PPI 234 CM is designed for counting, testing and execution of long lasting encoding sequences for chip modules on standard 35mm tapes that are commonly used within the Smartcard industry.

Designed to fulfil both key criteria, high throughput and flexibility in a high volume production environment, this high sophisticated test handler offers up to 3 independent encoding heads and can be equipped with a maximum of 120 contactless RFID or 42 contact based Smartcard readers.

Please visit IMASYS Technology Sdn. Bhd. for further information.



Depending on purpose of application and the variety of module types to be processed, the PPI234 CM can be fitted with either the same or a range of different type of encoding heads.

Optional: Additional handlers or existing test equipment can be implemented !



Please contact us here ...



Supported Reader

Baltech ID-Engine® (native via BprDriver.dll)



Please visit Baltech AG for further information.



Deciph It URM (native- and PC/SC via URMAPI.dll)



Please visit Deciphe It GmbH for further information.



Identiv SDI010/SDI011 contact- and contactless (via PC/SC and proprietary command set)



Please visit Identiv Inc. for further information.



Any PC/SC conform RFID- and SmartCard Reader (via PC/SC and Winscard.dll)





Optional: Native support of additional Reader can be implemented !



Please contact us here ...

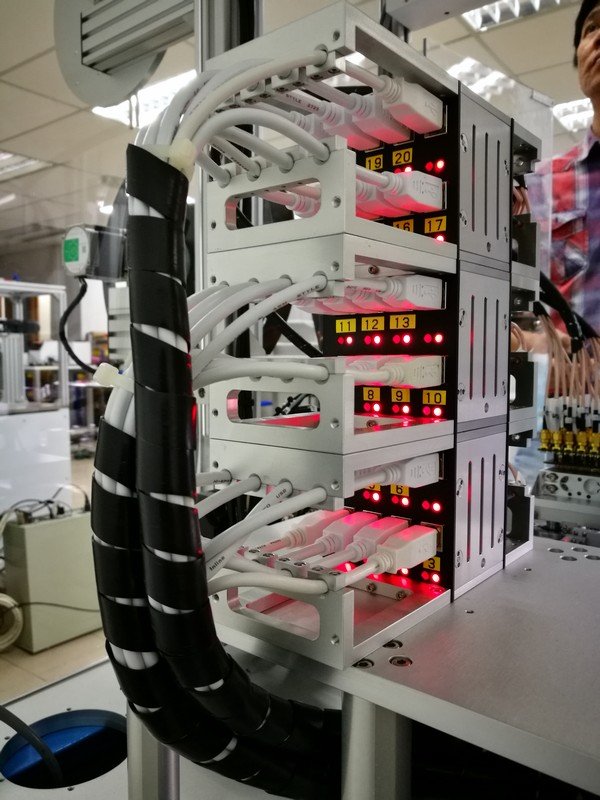

IMASYS Reader Tower
